Featured Orthopedic Implants & Surgical Systems
Explore our top-tier titanium and stainless steel medical devices engineered for spinal stabilization, trauma internal fixation, and total joint arthroplasty, complete with turn-key technical files.

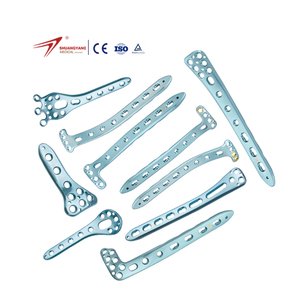

Shuangyang Medical High Quality Orthopedic Trauma Implants Plate And Screw Tibial Locking Plate For Tibia Bone Plates
Get a Quote

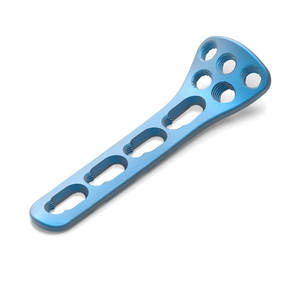

Top Selling MEDZORA SURGICAL High Quality CE Certified ISO13485 Certified Stainless Steel Bone Orthopedic Implants Custom Sizes
Get a Quote

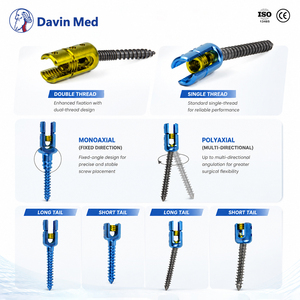

DavinMed Titanium Spinal Implant Orthopedic Surgical Spine Monoaxial Pedicle Screw System CE ISO Certified Sterile Packaging 1
Get a Quote
ISO 13485 CNC Machined Pedicle Screw Orthopedic Implant Spinal Fixation Bone Screw 5-Axis Machining OEM Medical Grade
Get a Quote

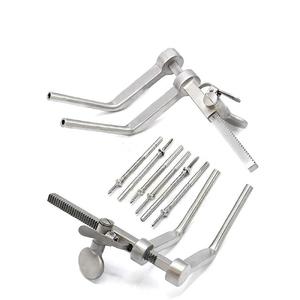

Hot Sale Caspar Style Distractor Spine Orthopedic Implant Instruments Set Quality Approved Steel Material
Get a Quote

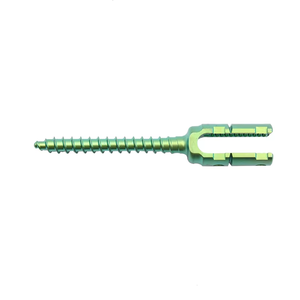

Orthopedic Implants Surgery Spine 6.0MM Titanium Reduction Monoaxial Pedicle Screw Hospital Use Lifetime Warranty
Get a Quote

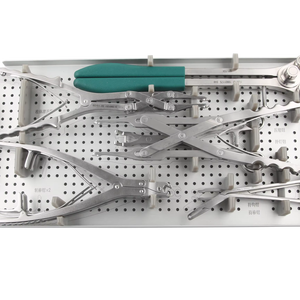

COX 6.0 Screw & Rod System Class I Implant Instruments for Orthopedic Surgery
Get a Quote

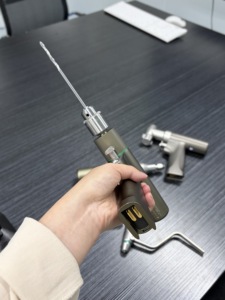

High Performance Orthopedic Bone Drill System for TKR THR Trauma and Joint Replacement Surgery
Get a QuoteArchitecting the Ultimate OEM/ODM Orthopedic Implant Documentation Package
For medical device importers, regional distributors, and brand owners, acquiring hardware is only 30% of the procurement challenge. The remaining 70% hinges on the rigor, completeness, and audit-readiness of the technical documentation package provided by your manufacturing partner.
1. Device Master Record (DMR) & Engineering Specification Dossier
A compliant OEM/ODM Orthopedic Implant Documentation Package must establish an unbroken line of engineering specifications. Ortix Medical supplies granular 2D dimensioned engineering drawings with Geometric Dimensioning & Tolerancing (GD&T) per ASME Y14.5M, full 3D STEP models, and raw material certificates tracing back to the master titanium ingots or PEEK batches.
- Material Inspection Certificates (EN 10204 3.1): Chemical composition and mechanical testing for Ti6Al4V ELI (ASTM F136 / ISO 5832-3), Pure Titanium Grade 2/4 (ASTM F67), and Ultra-High Molecular Weight Polyethylene (UHMWPE ASTM F648).
- Surface Finish & Anodization Protocols: Micro-roughness verification (Ra values), Type II anodic oxidation logs, and citric/nitric acid passivation reports per ASTM F86.
- Component Interoperability Matrices: Dimensional tolerances for tapers, screw thread pitch matching, and driver tip fit engagement.
2. Biomechanical Validation & Dynamic Fatigue Life Dossier
Regulatory authorities such as the US FDA, EU Notified Bodies (MDR 2017/745), and ANVISA require exhaustive physical testing datasets proving structural integrity under physiological cyclic loading. Our technical documentation includes complete third-party laboratory reports executed strictly in accordance with ASTM and ISO standards.
- Spinal Pedicle Screws & Cages: Static and dynamic axial compression, torsion, and fatigue testing according to ASTM F2193 and ASTM F2077. Dynamic runout testing up to 5,000,000 cycles at 10 Hz.
- Trauma Locking Compression Plates (LCP): Four-point bending strength and fatigue life evaluation per ASTM F382 and ISO 9585.
- Intramedullary Nails: Static torsional stiffness and dynamic fatigue resistance of locking slot interlocks per ASTM F1264.
- Dental & Dental/CMF Implants: Dynamic fatigue testing under 30-degree off-axis loading protocols as mandated by ISO 14801.
3. Biocompatibility & Toxicological Evaluation (ISO 10993 Series)
Information gain in orthopedic OEM sourcing requires verified biological safety data. Ortix Medical provides turn-key ISO 10993 compliance packages to minimize client regulatory submission cycles:
- ISO 10993-5 (Cytotoxicity): In vitro evaluation demonstrating non-cytotoxic responses in L929 mouse fibroblast cells.
- ISO 10993-10 / 10993-23 (Sensitization & Irritation): Intracutaneous reactivity testing proving zero dermal or mucosal tissue irritation.
- ISO 10993-11 (Systemic Toxicity): Acute and subchronic systemic toxicity data verifying zero systemic organ distress.
- ISO 10993-18 (Chemical Characterization): Extractable and leachable (E&L) mass spectrometry profiles proving non-toxic organic residue levels following ultrasonic precision washing.
4. Packaging Validation & Sterilization Assurance (ISO 11607 & ISO 11137 / 17665)
Whether delivered sterile in double Tyvek-blister blisters or non-sterile for hospital autoclave cycles, the documentation package features complete packaging validation data:
- Sterile Barrier Integrity (ISO 11607-1/2): Bubble leak testing (ASTM F2096), seal peel strength validation (ASTM F88), and dye penetration tests (ASTM F1929).
- Accelerated & Real-Time Aging: Shelf-life degradation studies supporting 5-year sterile barrier expiration dates under ASTM F1980 conditions.
- Sterilization Validation: Gamma irradiation dose mapping (VDmax25 method per ISO 11137) or Ethylene Oxide (EtO) residual analysis (ISO 10993-7).
State-of-the-Art Factory Infrastructure & OEM/ODM Capabilities
Ortix Medical operates a modern 60,000 square meter intelligent manufacturing facility dedicated exclusively to orthopedic implant engineering, surgical power tools, and precision instrumentation sets.
5-Axis Swiss CNC Precision
Equipped with over 450 advanced CNC machining centers—including Tsugami, Citizen, and DMG Mori 5-axis Swiss-type lathes—delivering strict tolerances down to ±0.005mm on complex pedicle screw threads and micro-locking plates.
ISO Class 7 Cleanroom
Cleanroom washing and automatic primary packaging operate within 10,000-level (ISO Class 7) controlled environments, utilizing multi-stage ultrasonic passivating washers with 18.2 MΩ·cm deionized water systems.
Full Lot Traceability
Every screw, plate, nail, and cage is laser-etched with a unique Device Identification (UDI) barcoding code, enabling 100% batch traceability from raw titanium billet to final surgical implant.
Future Trends in Global Orthopedic Procurement & Tech
Analyzing the shifts in biomechanical design, biomaterials, regulatory harmonization, and localized tender requirements shaping orthopedic supply chains through 2030.
1. Additive Manufacturing & 3D Porous Titanium Structures
Traditional machined smooth surfaces are rapidly yielding to Electron Beam Melting (EBM) and Direct Metal Laser Sintering (DMLS) 3D-printed porous titanium. The interconnected trabecular structure mimics native cancellous bone architecture (60–80% porosity, 300–500 µm pore size), significantly accelerating osteointegration and bone ingrowth in spinal fusion cages and acetabular cups.
2. EU MDR & Global Regulatory Harmonization Pressure
The transition from MDD to EU MDR (2017/745) has led many legacy European manufacturers to downsize product catalogs due to re-certification costs. This dynamic has catalyzed high demand for ISO 13485-certified Asian OEM/ODM factories capable of supplying complete MDR-compliant Technical Documentation Packages, enabling overseas distributors to secure local registration quickly.
3. PEEK-OPTIMA & Carbon-Reinforced Biomaterials
In spinal fixation and oncological reconstruction, radiolucent PEEK (Polyetheretherketone) and Carbon-Fiber-Reinforced PEEK (CFR-PEEK) are becoming standard. Their modulus of elasticity (~3.5 GPa) closely matches cortical bone, minimizing stress shielding while allowing radiologist-friendly artifact-free postoperative CT and MRI imaging.
4. Supply Chain Regionalization & Low MOQ SKU Flexibility
Global healthcare buyers are departing from single-brand dependency. Importers prioritize OEM partners capable of low Minimum Order Quantities (MOQ) and mixed-SKU consolidated shipping. Combining trauma plates, pedicle screws, intramedullary nails, and reusable instrument sets in single shipments optimizes inventory turnover and mitigates working capital risk.
Frequently Asked Questions by Global B2B Importers
Essential regulatory, operational, and technical answers for hospital purchasing agents, brand directors, and medical device distributors.
What documents are included in your standard OEM/ODM Documentation Package?
Our turnkey Technical File includes: ISO 13485 Quality Certificate, FDA Establishment Registration details, Raw Material Test Certificates (EN 10204 3.1), Biocompatibility Evaluation Summaries (ISO 10993), Mechanical Fatigue Test Reports (ASTM F382 / ASTM F2077 / ASTM F543), ISO 14971 Risk Assessment File, Sterilization & Packaging Validation Reports (ISO 11607), Instructions for Use (IFU), and 2D/3D component drawings suitable for regulatory dossier submissions worldwide.
Can Ortix Medical assist with local product registration in our country?
Yes. We regularly assist global distributors with national health authority approvals (such as SFDA, ANVISA, COFEPRIS, MoH, and TFDA). Our regulatory affairs department provides customized technical dossiers formatted according to STED (Summary Technical Documentation) guidelines to expedite local product licensing.
What is your typical Minimum Order Quantity (MOQ) for custom OEM branding?
We offer flexible low-MOQ programs to support market entry. Standard catalog items with custom laser marking (private labeling) start at low minimums per SKU. For full custom ODM implant design and development, MOQ is calculated based on raw material batch sizes and machining setup parameters.
How do you ensure lot-to-lot consistency and mechanical safety?
Quality assurance spans raw material verification to final release. Raw titanium and steel billets undergo spectrographic chemical analysis and tensile testing upon receipt. During machining, optical coordinate measuring machines (CMM) conduct inline dimensional inspections. Finished lots undergo 100% surface inspection, passivating verification, and batch release clearance by our certified Quality Control team.
Are instrument sets customizable for specific surgical preferences?
Yes. We offer fully customized stainless steel and aluminum instrument trays for spinal, trauma, and joint surgeries. Instrument handles, drill bits, taps, drivers, and retractors can be customized in color anodization, laser-engraved with your logo, and configured to match surgeon ergonomic preferences.
What are the lead times for evaluation samples and mass production?
Standard catalog evaluation samples ship within 3 to 5 business days. Mass production orders typically range from 15 to 30 days depending on order complexity, surface finishing requirements, and sterile packaging specifications.
Ready to Scale Your Orthopedic Portfolio with Verified OEM/ODM Support?
Partner with Ortix Medical to access world-class 5-axis CNC manufacturing, complete ISO 13485 regulatory technical documentation packages, and competitive factory-direct pricing for global tender success.
