The Biological Safety Paradigm: Why Biocompatibility Testing Defines Orthopedic Quality

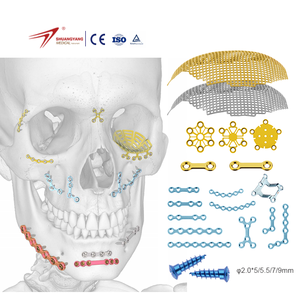

In modern orthopedic surgery, internal fixation implants—ranging from pedicle screw constructs, anterior cervical locking plates, and intramedullary nails to cranioplasty titanium meshes and PEEK interbody fusion cages—are engineered to remain inside the human body for extended durations or permanently. Consequently, evaluating an implant purely through mechanical fatigue strength or dimensional accuracy is fundamentally incomplete. Biological safety, systematically verified through rigorous ISO 10993 biocompatibility testing protocols, represents the ultimate benchmark determining patient clinical outcomes, regulatory clearance (such as US FDA 510(k) approval and EU MDR 2017/745 certification), and commercial viability for global medical device distributors.

When an orthopedic device is implanted into living tissue, it initiates an immediate cascade of host physiological responses. Metallic ions (such as Titanium, Vanadium, Aluminum, Chromium, or Nickel) or polymer leachables can potentially migrate into adjacent cortical bone, marrow cavities, and the systemic circulatory system. Furthermore, mechanical shear forces generate micro-wear debris that may trigger macrophage activation, chronic inflammation, osteolysis, and eventual implant loosening. Therefore, top-tier orthopedic implant factories must establish comprehensive Biological Evaluation Plans (BEP) that systematically analyze raw material purity, surface chemical passivation (ASTM F86), extractable organic residues, and cellular toxicity before any device reaches a clinical setting.

Material Science: Chemical Integrity & Biocompatibility Profiles

Selecting the correct medical-grade material is the foundational step in ensuring non-cytotoxic, highly biocompatible implant performance. Qualified orthopedic manufacturing factories rely on four primary material platforms, each adhering to precise international metallurgical and polymeric specifications:

1. Titanium Alloy Ti-6Al-4V ELI (ASTM F136 / ISO 5832-3): Renowned for its exceptional strength-to-weight ratio, superior corrosion resistance, and low modulus of elasticity compared to stainless steel. The "Extra Low Interstitial" (ELI) designation guarantees minimized oxygen, nitrogen, and iron content, dramatically reducing brittle micro-phase structures. Upon exposure to air or chemical nitric acid passivation, Ti-6Al-4V forms an ultra-thin, dense passive titanium dioxide ($TiO_2$) ceramic film that prevents metallic ion dissolution and promotes direct bone-to-implant contact (osseointegration).

2. Polyetheretherketone (PEEK OPTIMA / ASTM F2026): An advanced thermoplastic polymer widely specified for spinal interbody fusion cages, suture anchors, and cranial repair plates. PEEK exhibits an elastic modulus (approx. 3.5 to 18 GPa) closely matching human cortical bone, effectively mitigating the phenomenon of "stress shielding" that causes bone resorption around rigid metallic implants. Chemically inert and completely radiolucent, PEEK releases zero metallic ions, eliminating artifact interference during postoperative CT and MRI diagnostic imaging.

3. Medical-Grade Stainless Steel 316L (ASTM F138 / ISO 5832-1): A cost-effective, high-fatigue-strength alloy utilized extensively in temporary trauma fixation systems, including Kirschner wires, external fixators, and small fragment locking plates. The low-carbon ("L") formulation prevents intergranular carbide precipitation during heat treatment, maintaining maximum resistance to pitting and crevice corrosion in saline physiological environments.

4. Cobalt-Chromium-Molybdenum Alloys (CoCrMo / ASTM F75 / ISO 5832-4): Primarily specified for load-bearing joint prostheses (hip stems, knee femoral components) due to unparalleled tribological wear resistance and extreme hardness. Biocompatibility testing focuses heavily on ion release control ($Co^{2+}$ and $Cr^{6+}$) under cyclic friction regimes.

Future Procurement & Technological Trends in Orthopedic Implant Manufacturing

The global orthopedic implant procurement landscape is undergoing a dramatic evolution driven by shifting clinical expectations, stringent regulatory standards, and disruptive manufacturing innovations. Importers, hospital procurement boards, and commercial distributors must align their supply chain strategies with four dominant industry trends through 2030:

1. Widespread Adoption of 3D Printed (Additive) Porous Implants

Traditional solid titanium implants are rapidly yielding market share to 3D-printed porous titanium scaffolds produced via Electron Beam Melting (EBM) or Direct Metal Laser Sintering (DMLS). Selective porous geometries mimic the trabecular architecture of natural cancellous bone, facilitating vascularization and rapid bone inward growth (ingrowth). However, 3D printing introduces unique biocompatibility challenges—specifically the extraction of unmelted titanium micro-powders trapped within complex lattice pores. Exporters must possess validated ultrasonic multi-stage cleaning protocols and chemical etching workflows to ensure zero particulate shedding into patient tissue.

2. Bioactive & Antibacterial Surface Coatings

Post-operative surgical site infections (SSI) represent one of the most catastrophic complications in orthopedic trauma and joint arthroplasty. Future procurement contracts increasingly mandate implants featuring bioactive or infection-resistant surface treatments. Technologies such as Plasma-Sprayed Hydroxyapatite (HA) coatings enhance immediate early-stage osseointegration, while anodic micro-arc oxidation (MAO) incorporating bioactive silver ($Ag^+$), copper ($Cu^{2+}$), or zinc ($Zn^{2+}$) ions continuously releases localized bactericidal activity without causing systemic toxicity.

3. Heightened Regulatory Demands Under EU MDR 2017/745

The transition from the European Medical Devices Directive (MDD) to the rigorous Medical Devices Regulation (MDR) has eliminated historical "equivalence claims" for Class III and long-term implantable devices. Buyers can no longer market an implant based purely on similarity to an existing predicate. Factories must provide raw, empirical ISO 10993 test reports, full extractable/leachable toxicity profiles, clinical evaluation reports (CER), and robust Biological Evaluation Reports (BER) generated directly from their own manufacturing lines.

4. Supply Chain Consolidation & Turnkey OEM/ODM Modular Kits

Distributors are actively reducing vendor complexity by partnering with comprehensive single-source factories capable of supplying complete surgical ecosystems. A standalone pedicle screw or locking plate is commercially incomplete without its matched, ergonomically calibrated surgical instrument set (benders, taps, screwdrivers, drill guides). Leading exporters now offer fully integrated OEM solutions—providing customized laser marking, private label color anodization, cleanroom pouch sealing, and ready-to-use sterilizable container trays.

Enterprise Capabilities: Ortix Medical Devices Co., Ltd.

As a premier global orthopedic implant manufacturer and exporter, Ortix Medical Devices Co., Ltd. operates at the intersection of bio-engineering innovation, uncompromising quality control, and industrial scalability. Operating from a state-of-the-art 60,000 square meter production complex equipped with over 450 high-precision CNC multi-axis machining centers, our factory delivers a daily production capacity exceeding 20,000 units.

Our organization is backed by a dedicated team of 70+ R&D engineers specializing in biomechanical design, finite element analysis (FEA), and surface physical chemistry. Supported by an international sales and regulatory compliance staff of over 150 professionals, Ortix Medical serves hospital networks, medical device importers, and private-label distributors across North America, Europe, Latin America, Asia-Pacific, and the Middle East.

Whether you require standardized spinal pedicle screw systems, custom intramedullary nails, low-profile maxillofacial plating, or full ODM implant design from initial concept to sterile finished device, Ortix Medical provides low MOQ entry points, complete biological safety test reports, and unyielding lot-to-lot consistency.
