Qualified Sample Showcase
Featured OEM/ODM Orthopedic Implant Samples
Explore our verified sample portfolio available for qualified global distributors, OEM partners, and clinical purchasing groups. Request physical samples for dimensional, surface finish, and metallurgical validation.

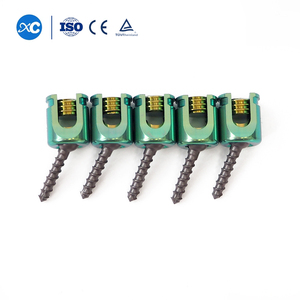

Distributor Price Titanium Columna Vertebral Pedicle Screw Spine Implants Orhtopedic for Spine Surgery
Premium Orthopedic Veterinary Trauma Implant Surgical Instrument - Titanium TTA Implant for Animal Orthopedic Trauma Surgery
ISO 13485 Certified Medical Device Manufacturing Services for Veterinary Diagnostics PCB Plastic Parts Assembly Class 7/8

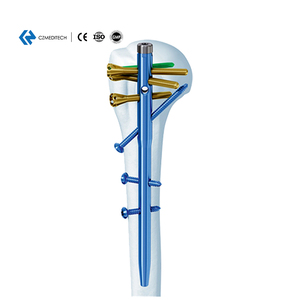

Reliable CZMEDITECH Multi-lock Humeral Intramedullary Nail CE Certified Class III Orthopedic Surgical Implants

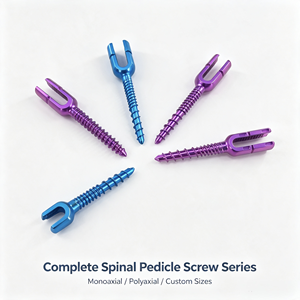

Custom OEM ODM Medical Grade Titanium Alloy Spine Fixation Pedicle Screws And Rods System Factory Direct Orthopedic Implants
2025 OEM Veterinary Orthopedic Implants | Titanium 4.0mm ALPS Locking Screw & Bone Plates for Dog Surgery
Sterile Packaged Titanium Alloy Dental Implant for Tissue Level Use
60,000m²
Smart Manufacturing Base
450+
5-Axis CNC Precision Lathes
20,000/day
Daily Implant Production
70+
Senior Biomedical Engineers
Navigating Orthopedic Implant Sourcing: A Rigorous Evaluation Framework for Sample Procurement
In the high-stakes sector of Class IIb and Class III orthopedic surgical implants, securing verified pre-production sample batches is far more than a routine procurement milestone—it forms the core foundation of clinical safety risk management, regulatory filing integrity, and long-term brand equity. Global distributors, hospital purchasing consortia, and OEM brand owners face mounting pressure under strict global regulatory frameworks such as the European Union Medical Device Regulation (EU MDR 2017/745) and United States FDA 21 CFR Part 820.
Evaluating sample quality from overseas suppliers requires a multi-layered verification strategy that goes beyond visual inspection. Sourcing teams must audit microscopic surface topography, mechanical fatigue endurance, chemical passivation, and dimensional repeatability across critical feature dimensions.
Information Gain Insight: According to ISO 13485 quality system standards, a prototype sample failure rate exceeding 0.05% in dimensional tolerance testing indicates structural process instability within CNC multi-axis milling paths. Rigorous sample inspection must evaluate thread pitch consistency under optical comparators and SEM analysis.
1. Metallurgical & Raw Material Authenticity Protocol
Top trusted factories provide complete material traceability from certified raw billet to the finished sample. For load-bearing applications like pedicle screw systems and trauma locking plates, standard materials include Medical Grade Titanium Alloy (Ti-6Al-4V ELI conforming to ASTM F136 / ISO 5832-3), High-Nitrogen Stainless Steel (316LVM ASTM F138), and Polyether Ether Ketone (PEEK-OPTIMA per ASTM F2026). Sample packages must arrive with authentic Certificate of Analysis (CoA) documentation, including Spectrographic Chemical Composition analysis and Tensile/Yield Strength verification batch reports.
2. Biomechanical & Dynamic Fatigue Testing Standards
Before clinical deployment, sample implants undergo rigorous mechanical stress testing in accordance with standardized international protocols:
| Implant Category | Core Standard Test | Key Evaluation Metrics | Target Clinical Threshold |
|---|---|---|---|
| Spinal Pedicle Screw Systems | ASTM F1717 / ISO 12189 | Static axial compression, torsional yield, dynamic fatigue load limit | 5,000,000 cyclic load runs without construct fracture |
| Trauma Bone Screws | ASTM F543 | Torsional yield strength, insertion/removal torque, axial pull-out force | Zero stripping of hexalobular/star drive recesses under max torque |
| Intramedullary Nails | ASTM F1264 | Bending stiffness, dynamic fatigue strength, interlocking hole shear tolerance | Uniform load distribution preventing peri-implant stress shielding |
| Interbody Fusion Cages | ASTM F2077 / ASTM F2267 | Static/dynamic shear, axial compression, subsiding resistance | High friction coefficient with zero particle shedding |
Factory Capabilities
Why Top Global Distributors Rely on Ortix Medical
Our state-of-the-art manufacturing infrastructure merges precision German and Japanese CNC machine technology with standardized cleanroom operations, supporting global medical device supply chains.
Swiss-Type 5-Axis CNC Machining
Operating over 450 high-precision DMG MORI and Citizen Swiss-type lathe centers, achieving precise tolerances down to ±0.003mm for complex spinal tulips, cannulated threads, and anatomical locking plate contouring.
Class 7 & Class 8 Cleanrooms
ISO 14644-1 certified controlled atmosphere cleanroom environments dedicated to ultrasonic cleaning, medical-grade pouch sealing, electronic assembly, and sterile barrier packaging (ISO 11607 compliant).
Full Turnkey OEM / ODM Solutions
Complete design-to-production engineering services including CAD/CAM modeling, 3D metal printing prototype sampling, custom laser marking, personalized tray configurations, and IFU graphic artwork packaging.
ISO 13485 & FDA Registration
Fully audited Quality Management System ensuring complete batch lot traceability from raw melt source to final sterile dispatch, backed by certified internal CMM and optical inspection laboratories.
Low MOQ & Agile Consolidation
Supporting growing regional distributors with low Minimum Order Quantity (MOQ) policies and mixed-SKU batch shipping. Combine trauma plates, screws, spinal cages, and instruments into single unified shipments.
Complete Surgical Instrument Kits
Every implant product family is matched with ergonomic, heat-treated surgical driver sets, reduction instruments, reamers, and anodized aluminum sterilization containers for immediate OR usage.
Strategic Outlook: Sourcing & Technological Trends in Orthopedic Manufacturing (2025–2030)
The global orthopedic implant market is undergoing a structural paradigm shift driven by technological advances, evolving demographic demands, and supply chain consolidation. Procuring managers and distributors must align their sourcing strategies with key industry mega-trends to remain competitive.
Trend 1: Rapid Expansion of 3D-Printed Porous Titanium Implants (Additive Manufacturing)
Traditional solid titanium interbody cages and joint replacement components are increasingly yielding market share to 3D-printed bio-mimetic porous structures. Utilizing Direct Metal Laser Sintering (DMLS) or Electron Beam Melting (EBM), advanced factories construct trabecular-like micro-architectures (pore sizes between 400µm–700µm with 60–80% porosity). This structural pore matrix matches the elastic modulus of human cancellous bone, virtually eliminating stress shielding while accelerating early bony ingrowth (osteointegration) without relying on plasma-sprayed coatings.
Trend 2: Supply Chain Resiliency & Modular OEM Sub-Assembly
Global logistics volatility has compelled medical device distributors to move away from multi-vendor sourcing towards consolidated, direct-to-factory partnerships. Leading suppliers now offer finished sub-assemblies—combining CNC precision machining, surface anodization, laser engraving, pre-sterilization packaging, and custom tray assembly under one certified roof. This vertical integration drastically reduces lead times and minimizes regulatory compliance friction.
Trend 3: Surge in High-Performance Veterinary Orthopedic Solutions
The global veterinary surgery market is experiencing exponential growth, particularly in canine TPLO (Tibial Plateau Leveling Osteotomy), TTA (Tibial Tuberosity Advancement), and ALPS mini-locking plate systems. Top trusted orthopedic factories are expanding dedicated veterinary production lines, applying human-grade Ti-6Al-4V materials and strict ISO 13485 manufacturing tolerances to animal surgical implants.
Trend 4: Regulatory Tightening and Demand for UDI-Ready Factory Packaging
With full enforcement of Unique Device Identification (UDI) regulations across North America, Europe, and Asia-Pacific, factories must provide GS1-compliant 2D DataMatrix laser marking directly onto implant surfaces. Pre-packaged, sterile single-use implants with tamper-evident blister packaging and scan-ready barcode labels are fast replacing non-sterile bulk shipments in modern hospital procurement tenders.
Buyer Knowledge Base
Frequently Asked Questions by Orthopedic Buyers
Technical, regulatory, and logistics solutions for purchasing directors, supply chain leads, and medical device importers.
What technical documentation accompanies sample batches for regulatory registration? +
Every sample order provided for distributor evaluation includes a comprehensive Technical Dossier. This package comprises ISO 13485 facility certificates, material batch Certificates of Analysis (CoA) confirming ASTM chemical and mechanical specs, CMM dimensional inspection sheets, surface roughness (Ra) test reports, and sterilization validation summaries (ISO 11137 for gamma/EO) to assist in your local Ministry of Health or FDA product registration filings.
How does your factory ensure lot-to-lot dimensional consistency across massive order volumes? +
We enforce Statistical Process Control (SPC) across all multi-axis CNC machine centers. Every production lot undergoes rigorous 3-stage inspection: Initial In-Process Inspection by machine operators, Statistical Automated Optical Inspection (AOI) during production runs, and 100% critical-dimension CMM testing prior to passivating and packing. Every single component is traceable back to its original raw material heat number.
Can custom branding, laser marking, and proprietary thread profiles be prototyped into samples? +
Yes. Our in-house R&D engineering team of 70+ specialists offers complete OEM/ODM engineering support. We accept STEP/IGES CAD files, customized thread geometry parameters, or physical prototype samples. We execute custom fiber laser marking (LOGOs, Lot numbers, UDI codes) and produce specialized prototype samples within 10 to 15 working days.
What are the recommended handling and sample sterilization testing protocols prior to clinical trial evaluation? +
Non-sterile evaluation samples must undergo standard hospital decontamination and autoclave sterilization cycles (typically steam sterilization at 134°C / 273°F for a minimum of 4 minutes in accordance with ISO 17665). For sterile pouch sample packages, barrier integrity remains valid for 5 years from the manufacturing date under controlled storage conditions.
What is the standard lead time for evaluation sample dispatch versus bulk order fulfillment? +
Standard catalog sample items (such as standard cortical screws, pedicle screws, and trauma locking plates) are stocked in our inventory buffer and ship within 3 to 5 business days via express air freight (DHL/FedEx/UPS). Bulk production orders or customized OEM systems follow a structured schedule, typically delivering within 20 to 30 calendar days based on quantity and packaging specs.
Accelerate Your Orthopedic Supply Chain Today
Connect directly with our senior biomedical engineering and global export logistics team. Request evaluation sample kits, technical catalogs, and competitive distributor pricing schedules tailored to your market.
