Precision Titanium & Stainless Steel Implants
Fully compliant with EU MDR Technical Documentation (Annex II & III) standards. Ready for distribution in Milan and across the European Union.

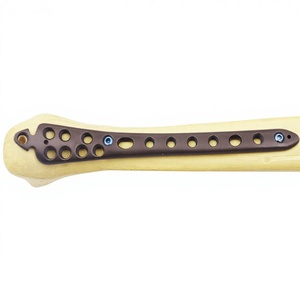

Distal Tibial Medial Locking Plate Fixation
- Material: Ti-6Al-4V ELI (ASTM F136)
- Anatomical Pre-contoured Design
- CE & ISO 13485 Certified
Straight Reconstruction Plate (1.5–3.5mm)
- Stainless Steel 316L / Titanium
- Multi-fragment Trauma Application
- High Fatigue Strength Profile

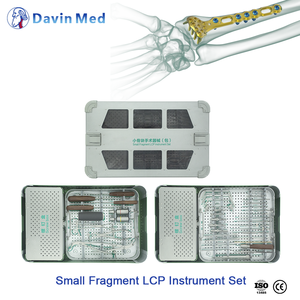

Small Fragment Instrument Set & Screw Box
- Autoclavable Aluminum Alloy Container
- Ergonomic Surgical Drivers & Taps
- Complete Upper Limb Trauma Kit
CMF 1.8mm Self-Tapping Emergency Locking Screw
- Micro-Thread Bio-mechanic Pitch
- Neurosurgery & Cranio-Maxillofacial
- High Torsional Shearing Resistance
Arthroscopy Grasping Forceps (203mm Serrated Jaw)
- Surgical Grade German Stainless Steel
- Precision Arthroscopic Joint Surgery
- Corrosion Resistant Surface Passivation
Ulna Interlocking Intramedullary Nail System
- Minimal Invasive Diaphyseal Fixation
- Anatomic Fluting & Tapering
- Multi-axial Proximal & Distal Locking
3D Titanium Alloy Mesh Reconstruction Implant
- High Micro-Pores Osseointegration
- Vertebral Body & Bone Defect Fusion
- Superior Compressional Load Capacity
Cannulated Headless Compression Herbert Screw
- Differential Thread Pitch Compression
- Scaphoid & Intra-articular Fractures
- Minimal Soft-tissue Impingement
Orthopedic Implant Technical Documentation Supply Architecture for Milan & Lombardy Healthcare Networks
An authoritative technical evaluation of EU MDR 2017/745 Annex II & III compliance, raw material metallurgical integrity, and supply chain strategies for European medical device importers, tenders, and healthcare institutions.
1. The Regulatory Landscape in Milan & Lombardy: The Critical Role of Comprehensive Technical Files
Milan, as the economic capital of Italy and the primary healthcare hub of Lombardy (serving world-class clinical research centers such as IRCCS Istituto Ortopedico Gaetano Pini, Ospedale Maggiore Policlinico, and IRCCS San Raffaele), maintains rigorous regulatory benchmarks for medical device procurement. Under the mandatory implementation of European Medical Device Regulation (EU MDR 2017/745), medical device distributors, contract manufacturers, and OEM importers can no longer rely on simplified declarations. Acquiring a fully compliant, audit-ready Technical File (Technical Documentation) is now the fundamental prerequisite for commercialization within Italy and the broader European Economic Area (EEA).
Ortix Medical Devices Co., Ltd. serves as an expert technical dossier exporter and OEM/ODM manufacturing partner. We engineer orthopedic implants—spanning trauma locking plates, spinal pedicle screw systems, intramedullary nails, and CMF self-tapping screws—alongside standardized STED (Summary Technical Documentation) structured dossiers. Our technical files empower Milanese distributors to seamlessly submit registration documentation to Notified Bodies (such as TÜV SÜD, IMQ, and Istituto Superiore di Sanità) and register products in the Italian Repertorio Dispositivi Medici (RDM) and the centralized EUDAMED database.
Technical File Definition under MDR Annex II & III
A compliant Orthopedic Technical File must contain extensive evidence proving implant safety, performance, and risk management. It encompasses device specifications, manufacturing validation, raw material lot certificates, ISO 10993 biocompatibility testing, biomechanical fatigue validation (ASTM F1717 / ASTM F382), real-time shelf-life packaging validation, and clinical evaluation reports (CER) in accordance with MEDDEV 2.7/1 Rev 4 and MDR requirements.
Full Annex II Compliance
Comprehensive technical dossiers detailing device descriptions, intended purpose, GMDN/EMDN classification, labels, instructions for use (IFU), and design verification data ready for Notified Body audit.
Metallurgical & ISO 10993 Testing
Biocompatibility test suites including cytotoxicity, systemic toxicity, sensitization, and genotoxicity alongside chemical characterization (ISO 10993-18) for implantable titanium and PEEK.
Accelerated Registration for Italy
Pre-validated dossier architecture dramatically reduces regulatory query turnaround times for Italian importers registering products with the Ministero della Salute.
Structure of Ortix Medical Technical Dossiers for European Importers
To support public tender bidding through ARIA S.p.A. (Azienda Regionale per l'Innovazione e gli Acquisti in Lombardia) and private hospital supply chains in Milan, our technical documentation is structured as follows:
| Technical File Module | Standard Reference | Documentation Deliverables Included | Importers & Tender Benefit |
|---|---|---|---|
| 1. Device Description & Specs | MDR Annex II Section 1 | CAD drawings, engineering tolerances, UDI-DI assignment, variant matrices, material grade data. | Clear device traceability and exact dimensional matching for surgical instrument sets. |
| 2. Raw Material Validation | ASTM F136 / ISO 5832-3 (Ti6Al4V ELI) | Mill test certificates, chemical composition analysis, microstructure grain size reports. | Guarantees bio-inert performance, eliminating metallosis and foreign body reactions. |
| 3. Biomechanical Verification | ASTM F382 (Plates) / ASTM F543 (Screws) | Static bending, dynamic fatigue limit curves (5 million cycles), screw pullout force, torque to failure. | Ensures implants withstand heavy physiological loads without structural fatigue failure. |
| 4. Risk Management File | EN ISO 14971:2019 | Hazard identification, AFMEA (Application Failure Mode & Effects Analysis), residual risk evaluation. | Fulfills Notified Body safety requirements and mitigates clinical liability. |
| 5. Packaging & Sterilization | EN ISO 11607-1 & -2 / ISO 11137 | Cleanroom bioburden testing, EO sterilization validation (SAL 10⁻⁶), accelerated aging shelf-life reports. | Validates 5-year sterile barrier integrity for immediate hospital usage. |
| 6. Clinical Evaluation (CER) | MEDDEV 2.7/1 Rev 4 / MDR Art. 61 | Systematic literature review, equivalence demonstration, post-market clinical follow-up (PMCF) plan. | Demonstrates clinical safety without requiring redundant, costly clinical trial data. |
2. Advanced Metallurgical Engineering & Biomechanical Benchmarks
The clinical success of internal fixation devices—such as Distal Tibial Medial Locking Plates and Ulna Interlocking Intramedullary Nails—hinges entirely upon raw material purity and micromachining precision. Ortix Medical utilizes medical-grade Titanium Alloy (Ti-6Al-4V ELI / Grade 23) adhering strictly to ASTM F136 standards, as well as ultra-high-grade Stainless Steel 316L (ASTM F138). Titanium Grade 23 ELI (Extra Low Interstitial) offers superior fracture toughness and fatigue resistance compared to standard Grade 5 titanium, rendering it the ideal material for high-stress dynamic trauma applications.
Key Metallurgical & Mechanical Highlights:
- Anatomic Pre-Contouring: Locking plates are CAD-engineered based on 3D CT osseous morphology data of adult skeletons, minimizing the need for intraoperative plate bending by Milanese orthopedic surgeons and preserving cold-work fatigue strength.
- Combifix Locking Hole Technology: Plating systems incorporate hybrid locking and compression holes, permitting both angular stability locking with threaded screw heads and dynamic inter-fragmentary compression with standard cortical screws.
- Micro-Arc Anodization (MAO): Surface treatment generates a biocompatible, anti-galling titanium oxide layer that increases surface hardness, minimizes fretting corrosion at the screw-plate interface, and enables color-coded dimensional identification during surgery.
- High-Torsion Cannulated Screws: Herbert screws and trauma compression screws feature precise cannulated bores drilled via deep-hole gun drilling, ensuring smooth guide-wire passage and minimal rotational runout during percutaneous insertion.
| Implant Type | Material Specification | Tensile Strength (MPa) | Yield Strength (MPa) | Primary Clinical Indication |
|---|---|---|---|---|
| Distal Tibial Locking Plate | Ti-6Al-4V ELI (ASTM F136) | ≥ 860 MPa | ≥ 795 MPa | Complex intra-articular and extra-articular distal tibia fractures. |
| Reconstruction Plate Series | Stainless Steel 316L (ASTM F138) | ≥ 690 MPa | ≥ 480 MPa | Pelvic, clavicle, and straight long bone fracture reconstruction. |
| Ulna Interlocking Nail | Ti-6Al-4V ELI (ASTM F136) | ≥ 860 MPa | ≥ 795 MPa | Diaphyseal ulnar fractures and non-unions via MIS approach. |
| Cannulated Herbert Screw | Ti-6Al-4V ELI (ASTM F136) | ≥ 930 MPa | ≥ 860 MPa | Scaphoid non-union, osteochondral fractures, small bone osteotomies. |
3. Localized Application Scenarios Across Milan & Lombardy Trauma Centers
The clinical demands of Milan’s healthcare infrastructure vary across specialized medical facilities. Ortix Medical's comprehensive product catalog directly addresses these localized operational requirements:
High-Energy Trauma & Emergency Care
In major emergency centers (e.g., Niguarda Trauma Center), high-velocity traffic and industrial injuries require immediate, rigid fracture fixation. Our Distal Tibial Medial Locking Plates and Ulna Intramedullary Nails provide immediate biomechanical stability, allowing early patient mobilization and reduced bed-rest complications.
Elective Reconstruction & Joint Arthroscopy
Orthopedic institutions focusing on sports traumatology and joint preservation utilize our OEM 203mm Arthroscopy Grasping Forceps and Cannulated Herbert Screws. Designed for micro-invasive arthroscopic procedures, these tools provide fine tactile feedback and precise tissue manipulation in knee, shoulder, and wrist reconstructions.
Neurosurgery & Cranio-Maxillofacial Surgery
In specialized surgical units, our CMF 1.8mm Self-Tapping Emergency Locking Screws offer low-profile fixation. Featuring sharp cutting flutes and micro-thread geometry, they ensure secure anchorage in thin cranial bone without thermal necrosis.
Vertebral Reconstruction & Bone Defect Fusion
For complex spinal revisions and oncological bone defect reconstructions, our 3D Titanium Mesh Implants provide structural support. The open porous network promotes rapid autologous bone ingrowth, achieving high fusion rates in anterior cervical and thoracolumbar procedures.
4. Localized Procurement Trends & Supply Chain Optimization in Northern Italy
Medical device importers and stocking distributors in Milan face evolving commercial pressures. Centralized public regional purchasing organizations (such as ARIA in Lombardy and Intercent-ER in neighboring Emilia-Romagna) prioritize suppliers capable of offering contract flexibility, complete lot traceability, and low minimum order quantities (MOQs).
Traditional sourcing models requiring high order volumes for single SKUs lead to inventory obsolescence. Ortix Medical solves this challenge by supporting Mixed-SKU Consolidation. Importers in Milan can combine trauma plates, cannulated screws, intramedullary nails, CMF fixations, and autoclavable instrument sets within a single, optimized shipment.
- OEM / ODM Private Labeling: Laser marking of distributor logos, custom part numbering, custom barcode matrix (GS1 DataMatrix for UDI tracking), and tailored box/pouch artwork compliant with EU MDR labeling guidelines.
- Rapid Freight Connectivity to Milan: Located near major transportation nodes, we support expedited air freight directly to Milan Malpensa (MXP) or sea freight via Genoa Port, with complete export declaration documentation for seamless Italian Customs clearance.
- Evaluation Sample Program: Qualified Italian medical device distributors can request non-sterile evaluation samples and demo instrument sets to conduct surgeon hands-on evaluations prior to placing bulk orders.
5. Corporate Capabilities & Manufacturing Strengths of Ortix Medical
Ortix Medical Devices Co., Ltd. operates as a leading global manufacturer of orthopedic implants and surgical instruments. Our facility is engineered to deliver high-precision medical devices under strict quality management systems.
60,000 m² Modern Manufacturing Base
Our expansive production complex houses 100,000-class cleanroom packaging zones, ultrasonic automated cleaning lines, and automated storage systems designed specifically for medical devices.
450+ High-Precision CNC Machines
Equipped with 5-axis Swiss-type CNC automatic lathes (Citizen, Tsugami), multi-axis machining centers (Haas), and high-precision wire-EDM cutting machinery capable of achieving ±0.005mm tolerances.
70+ Dedicated R&D Engineers
Our engineering team specializes in finite element analysis (FEA), biomechanical testing, and custom implant development, collaborating with clinical specialists to continuously improve implant ergonomics.
Certified Quality Assurance
Operating under ISO 13485:2016 certified quality management systems and FDA registration. Every production lot undergoes 100% optical coordinate inspection and full raw material heat traceability.
Frequently Asked Questions by Milan Procurement Managers
Essential guidance on technical documentation transfer, regulatory compliance, ordering, and logistics for Italian medical device distributors.
How does Ortix Medical support EU MDR 2017/745 Technical File requests for Milan importers? ▼
We provide comprehensive STED-format Technical Dossiers covering all Annex II and III requirements under EU MDR. This includes complete device descriptions, design verification and validation reports (mechanical fatigue testing per ASTM standards), ISO 10993 biocompatibility test reports, ISO 14971 risk management files, real-time packaging shelf-life data, and Clinical Evaluation Reports (CER). Qualified distributors in Milan receive full documentation support to facilitate product registration with the Italian Ministry of Health (Repertorio Dispositivi Medici) and Notified Bodies.
Can we customize laser markings, packaging, and IFUs under our own Italian brand name? ▼
Yes. Ortix Medical offers full OEM/ODM private label manufacturing services. We provide high-precision fiber laser marking for distributor logos, custom part reference numbers, lot numbers, and GS1-compliant UDI DataMatrix codes directly onto implants. Additionally, we support customized sterile/non-sterile packaging design, box layout, and Italian-language Instructions for Use (IFU) in strict accordance with EU MDR labeling mandates.
What is the typical lead time and shipping route for deliveries to Milan, Italy? ▼
For standard catalog items, orders are dispatched within 10 to 15 business days. Air freight shipments to Milan Malpensa Airport (MXP) typically arrive within 4 to 7 transit days. Sea freight orders routed via the Port of Genoa require approximately 25 to 30 days. We provide comprehensive export documentation, including Commercial Invoice, Packing List, Certificate of Origin, and Mill Test Certificates to ensure swift Italian customs clearance.
What are the minimum order quantities (MOQs) for mixed-SKU orthopedic shipments? ▼
We support flexible procurement strategies for distributors by offering low MOQs and mixed-SKU consolidation. Importers can combine low-volume specialized plates (such as distal tibial locking plates), cannulated screws, CMF emergency screws, and surgical instrument kits into a single consolidated order. This prevents capital lockup and allows distributors to test market demand in Lombardy without maintaining excessive inventory.
How can Italian healthcare institutions request evaluation samples before placing bulk contracts? ▼
Qualified medical device distributors, hospital procurement teams, and surgical department directors can request non-sterile evaluation samples through our Free Sample evaluation protocol. Samples allow surgical teams in Milan to assess surface passivation finish, thread tolerances, mechanical fit, and instrument handling prior to committing to commercial contracts.
Are Ortix Medical surgical instruments compatible with major international implant systems? ▼
Yes. Our instrument sets—including small fragment screw boxes, drill bits, taps, countersinks, and hex/AO quick-coupling screwdrivers—are manufactured to international ISO standardized connection interfaces (such as AO quick-coupling drives). They offer full cross-compatibility with standard international trauma and spinal fixation systems used across European hospitals.
Partner with a Trusted Orthopedic Technical File Exporter Serving Milan
Acquire CE & ISO 13485 certified implant systems backed by comprehensive EU MDR Annex II technical dossiers. Contact our medical engineering team today to review technical documentation, request evaluation samples, or initiate OEM/ODM private labeling discussions.
