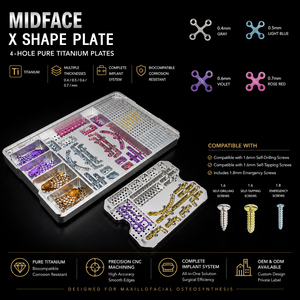

OEM & ODM Available Medical Titanium X Plate Maxillofacial Implant For Facial Reconstruction Orthopedic Implant Application
Inquire Now
Stainless Steel Titanium Veterinary Surgical Orthopedic Implants 1.5/2.0/2.4/2.7/3.5mm Straight Reconstruction Plate CE ISO
Inquire Now
ORTHOCORE 1.5mm Locking Compression Plates Titanium Veterinary Orthopedic Implant Safe & Reliable
Inquire Now
Factory Direct Sales Prosthetic Medical Orthopedic Foot Support Drop Splint Traction Brace Orthosis Shell Afo Equipment Device
Inquire Now
Shuangyang Factory Customization1.8 Neurosurgery Orthopedic Implants Craniomaxillofacial Locking Self Tapping Emergency Screw
Inquire Now
Shuangyang Medical Orthopedic Trauma Implants 2.0mm Titanium Orthopedic Cortex Screw - Quadrangle Design Prices Of Bone Screws
Inquire Now

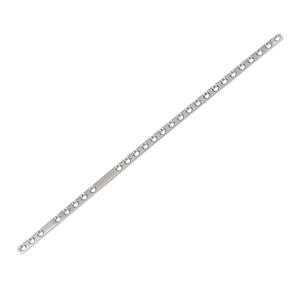

Orthopedic Implants Stainless Steel 1.5mm Straight Plate (Thickening) Black CE/ISO9001/ISO13485 Certified 1 Year Warranty Animal
Inquire Now
Engineering & Biomechanical Fundamentals of Suture Button Constructs
In modern sports medicine and orthopedic trauma surgery, the management of joint instability—specifically syndesmotic disruptions of the ankle and acromioclavicular (AC) joint dislocations—has undergone a paradigm shift. Rigid metallic hardware, such as traditional 3.5mm or 4.5mm transfixation syndesmotic screws, often fails to preserve physiological micro-motion. This can lead to hardware fatigue, screw breakage, or compulsory secondary removal operations.
As a specialized Suture Button With Loop Exporter serving the Austria market and broader European healthcare institutions, our engineering design focuses on providing dynamic continuous tension, micro-motion accommodation, and zero-knot slippage. The construct consists of high-strength cortical titanium buttons (Ti-6Al-4V ELI / Grade 23) coupled with ultra-high-molecular-weight polyethylene (UHMWPE) continuous braided loop sutures.
Ti-6Al-4V ELI Titanium Alloy
Manufactured using medical-grade titanium alloy with enhanced damage tolerance and fracture toughness, reducing stress shielding while guaranteeing high yield strength.
Ultra-High Molecular Weight Polyethylene
Continuous-braided UHMWPE sutures offer exceptional tensile fatigue resistance, zero elongation under repetitive physiological loads, and low abrasion coefficient against bone tunnels.
Dynamic Physiological Reduction
Replicates native ligament elasticity, allowing sagittal multi-directional motion of the fibula relative to the tibia while preventing lateral diastasis during weight-bearing movement.
Localized Application Scenarios in Austria's Orthopedic Infrastructure
Austria possesses one of Europe's most sophisticated healthcare and trauma networks, driven by both high-volume public hospital alliances (e.g., Wiener Gesundheitsverbund, KAGes, gespag, TILAK/Tirol Kliniken) and specialized private alpine sports trauma clinics in regions like Tyrol, Salzburg, and Vorarlberg. Given the high prevalence of winter sports activities—including alpine skiing, snowboarding, and downhill mountain biking—orthopedic trauma surgeons frequently encounter complex soft-tissue and bony ligamentous injuries.
1. Alpine Skiing Ankle Syndesmosis Repair (Innsbruck & Salzburg Trauma Centers)
High-speed torsional forces transmitted through rigid ski boots often result in high ankle sprains, rotational ankle fractures (Weber B and Weber C), and complete rupture of the anterior inferior tibiofibular ligament (AITFL) and posterior inferior tibiofibular ligament (PITFL). In Austrian trauma units, dynamic suture button fixation allows early mobilization without the need for a secondary procedure to remove hardware prior to full weight-bearing rehabilitation.
2. Acromioclavicular (AC) Joint Dislocation (Rockwood Type III–V)
Direct impact injuries suffered in snowboarding or mountain biking frequently cause complete coracoclavicular (CC) ligament disruption. Our dual suture button with continuous fixed/adjustable loop allows anatomical reduction of the clavicle to the coracoid process, restoring vertical and horizontal stability under fluoroscopic guidance.
3. Lisfranc Tarsometatarsal Ligament Complex Reconstruction
Midfoot injuries resulting from axial loading and forced plantar flexion in sports injuries require rigid midfoot stabilization. The dynamic suture button construct maintains alignment between the medial cuneiform and second metatarsal base without rigid fusion, permitting midfoot articulation while soft tissue healing takes place.
Technical Specifications & Engineering Tolerances
As an established exporter to European clinical distributors, our product lines are fully validated for structural integrity, biocompatibility, and sterilization standard compliance. Below is the technical specification matrix for our Suture Button with Loop implant system:
| Parameter | Fixed Loop Suture Button | Adjustable Loop Suture Button | Dual-Button AC Repair System |
|---|---|---|---|
| Substrate Material | Ti-6Al-4V ELI (ASTM F136) | Ti-6Al-4V ELI / PEEK Optima | Titanium Alloy Grade 23 |
| Suture Construction | UHMWPE #2 Braided Loop | Self-Locking UHMWPE Braid | High-Strength UHMWPE & Polyester |
| Tunnel Diameter | 3.5 mm / 4.0 mm Cannulated | 3.5 mm Single Tunnel | 4.0 mm Coracoid / Clavicle |
| Ultimate Tensile Load | > 950 N | > 1100 N | > 1250 N |
| Knot-Slippage Displacement | < 0.5 mm at 500,000 cycles | < 0.3 mm at 500,000 cycles | Zero displacement (Knotless) |
| Sterilization Method | EO / Gamma Irradiation | EO / Gamma Irradiation | EO Double Sterile Barrier |
| Regulatory Certifications | EU MDR (2017/745), ISO 13485 | EU MDR (2017/745), ISO 13485 | CE Mark, FDA 510(k) Cleared |
Austrian Market Trends & EU MDR Regulatory Landscape
Navigating the medical device market in Austria requires strict adherence to European Union regulations, national health insurance structures, and regional procurement practices:
EU MDR (2017/745) Compliance
All surgical implants exported to Austria must comply with Class IIb certification standards, including full Clinical Evaluation Reports (CER), Post-Market Surveillance (PMS), and Unique Device Identification (UDI) tracking in the EUDAMED database.
Public Tender Integration (BBG)
Procurement for Austrian public hospital networks is coordinated via the Federal Procurement Agency (Bundesbeschaffung GmbH - BBG) and regional purchasing groups, prioritizing implants that reduce total cost of care.
AUVA & ÖGK Reimbursement Trends
The Austrian Workers' Compensation Board (AUVA) and Austrian Health Insurance Fund (ÖGK) favor dynamic fixation solutions like suture buttons, which accelerate return-to-work timelines and lower overall rehabilitation costs.
Enterprise Manufacturing Strength & Export Capabilities
Ortix Medical Devices Co., Ltd. operates a state-of-the-art 60,000 m² manufacturing plant equipped with over 450 precision multi-axis CNC Swiss-type lathes, 5-axis machining centers, and automated ultrasonic washing and cleanroom packaging lines. Our daily production capacity exceeds 20,000 units, guaranteeing stable supply chain performance for European healthcare importers and distribution partners.
We specialize in providing flexible minimum order quantity (MOQ) solutions, allowing Austrian distributors to order consolidated, mixed-SKU shipments containing trauma locking plates, intramedullary nails, pedicle screws, and sports medicine suture buttons. Every production lot undergoes rigorous mechanical testing—including static bending, dynamic fatigue testing, pull-out resistance, and dimensional verification via automated optical measurement systems.
Frequently Asked Questions by Austrian Procurement Teams
Partner with a Certified Suture Button & Orthopedic Exporter
Expand your product portfolio in Austria and Western Europe with high-margin, MDR-compliant dynamic fixation implants and matching instrument systems.
